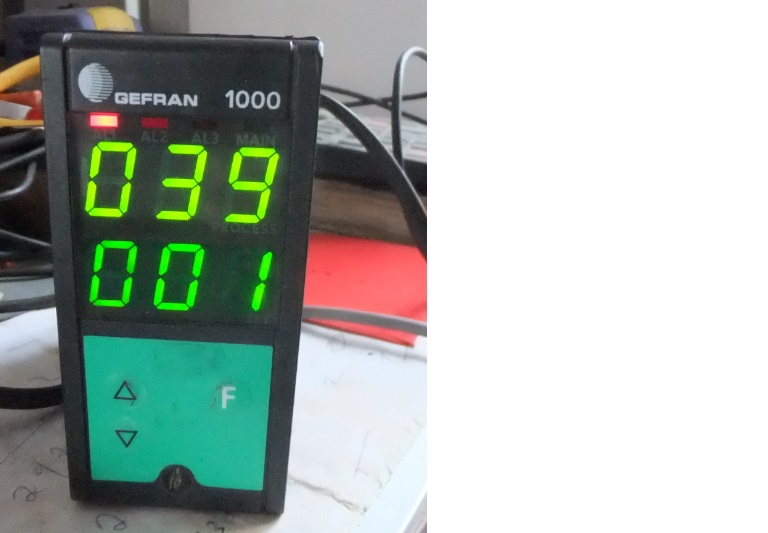

Microprocessor controller, 48x96 (1/8 DIN) format for model 1000 and 96x96 (1/4 DIN) format for models 1001 and 1101 manufactured using SMT. The 1000 family of controllers provide a complete operator interface, with a Lexan membrane faceplate to give IP54 frontal protection that has 3 keys, two green LED displays with 3 (1000) or 4 (1001 and 1101) digits, and red LED indicators for the 3 alarm relay outputs and a green LED for the main control output. The main input for the control variable is universal and provides the possibility of connecting different types of signal: • Thermocouples of types J, K, N, S, R, T • Resistance thermometer Pt100 (3-wire) • Linear inputs: 0-50mV, 10-50mV keyboard definable 2-10V, 0-10V, 0-20mA, 4-20mA with an external shunt. An auxiliary analogue input is available for a current transformer input.

The instrument has a double control output that is both relay (5A, 250Vac at cos φ =1) and static (24Vdc, max.20mA) and up to a maximum of 3 alarm relay outputs (3A, 250Vac). Alternatively, the control output can be analogue (0-20mA, 4-20mA or 0-10V, 2-10V). The optional communications port can be current loop, or RS485 with GEFRAN (Cencal) protocol with a maximum speed of 9600 baud (RS485). The programming of the instrument is simplified by the grouping of the parameters into function blocks. Access to the configuration parameters is protected by a hardware jumper and different values of a protection code can be used to restrict the number of parameters that can be displayed and modified by the user.

GEFRAN controllers are configurable microprocessor panel instruments that precisely control variables such as temperature, pressure, force, humidity, position, etc., with programmable alarms and optional communication interface. Accessories for controllers and programmers; Configure. Double loop PID Controller, 1/16 DIN.

Gefran 1000 Series Suitable for use in manufacturing, chemical and pharmaceutical industries as well as food, packaging and even wood working machines. The Gefran 1000 series of Microprocessor Controllers supports thermocouple configuration to suit almost any application. This series of Microprocessor temperature controllers are equipped with a Lexan© membrane faceplate to provide a frontal IP54 rating. Featuring self-tuning, auto-tuning soft-start and bumpless transfer, the 1000 series controllers are quick and easy to commission into a control system with simplistic maintenance processes as well as being easy to install into a standard 1/8 DIN unit. The large format LED read out features two rows of green 14mm characters to clearly display temperature and control read outs. The IP54 rated facia also features three control keys, a single function key along with a raise and lower key for program controlling. Features and Benefits • Optional input signal offset • Logic main, relay & mA main output • Up to 3 configurable alarms • Short circuit & open circuit probe alert • Supports self-tuning, soft-start & bumpless manual / auto transfer • Relay (5A at 250 Vac / 30 Vdc) & static (24 Vdc ± 10%) outputs available • Auxiliary C.T input.
